Date: 10-06-2023
|
Number of Hours: 8.00
|
Short Description: Started running the electrical wires through the l
|
I enlarged the bushing holes as needed to accomodate the number of wires needed for the lights, heated pitot tube, roll autopilot servo and trim, NAV antenna, magnetometer and OAT probe. The magnetometer, OAT probe and NAV antenna are located in the left wing and the other components are in the right wing to minimze potential interference with the magnetometer. The bushing sizes are compatible with the VAN's recommendations.

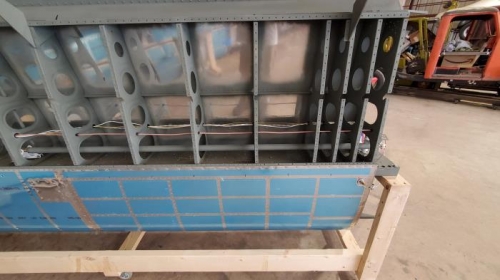

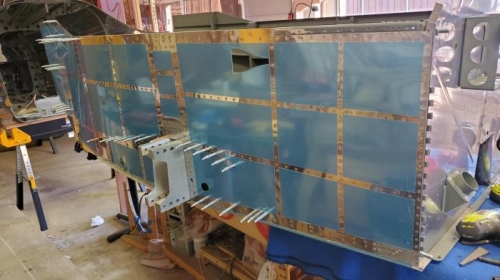

Right wing wiring
|

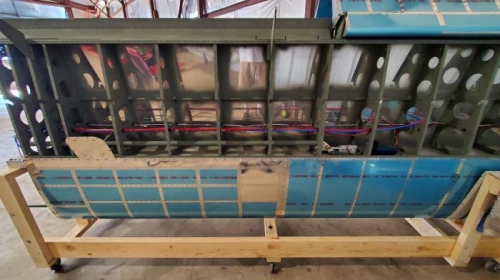

Left wing wiring
|

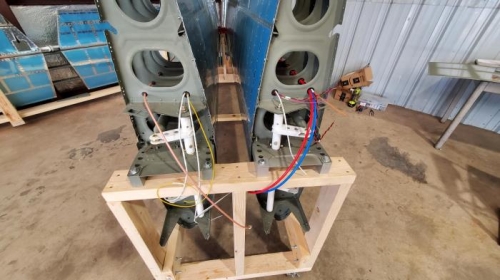

Inboard end view
|
