RV-7
' style=
Date:  9-1-2018
Number of Hours:  4.50
Manual Reference:
Brief Description:  Route EGT and CHT wiring

Terminate EGT and CHT probes. Routed the thermocouple wire through the feedthrough and to the cylinders. Crimped on ring terminals and attached them to the pre-installed terminals on the EGT/CHT probles. Carefully routed the wires in parallel with the spark plug wiring for a neat and tidy install.
' style=

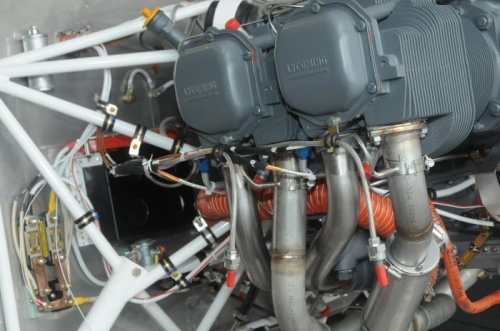

Cyl 1 and 3 wiring

Cyl 1 and 3 wiring

' style=

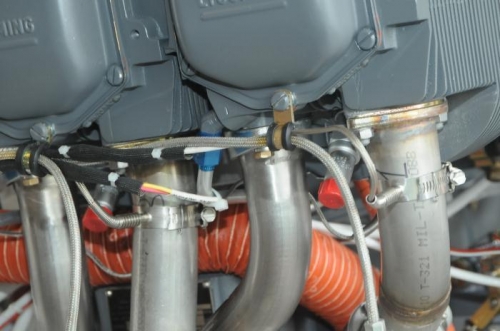

Cyl 3 detail

Cyl 3 detail

' style=

Cyl 1 detail

Cyl 1 detail

' style=
