Date:  1-25-2015
Number of Hours:  6.50
Manual Reference:
Brief Description:  Drilling firewall to fuse brackets

Drilled the lower firewall to fuselage brackets, the ones that hold the four AN-3 bolts, to the F-717 longerons. Good edge distance and clearance for the nuts all around.

Tweaked the bends and fit for the F-684 gussets and match drilled them to the skin and the F-713s.

Not too many parts, but a lot of tuning to get everything right..
' style=

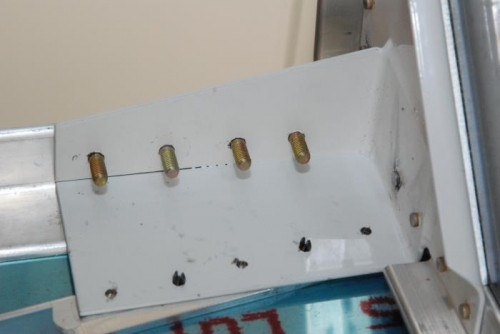

F717 longeron with bolts installed (bottom view)

F717 longeron with bolts installed (bottom view)

' style=

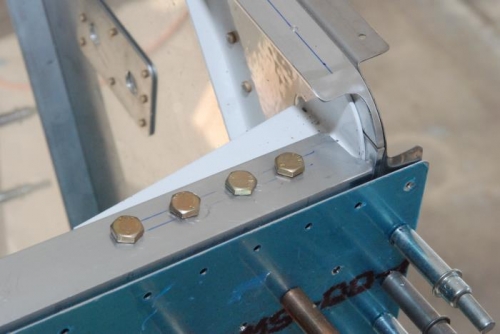

Cockpit side view

Cockpit side view

' style=

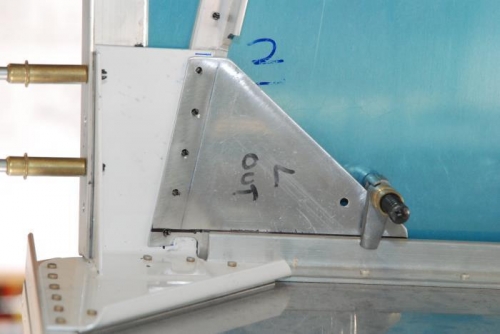

F684 gussets fitted

F684 gussets fitted
