Ron Lendon's Aircraft Mfg.
' style=
Date:  5-23-2006
Number of Hours:  4.00
Manual Reference:  6T6
Brief Description:  6T6 Trim tab Assembly

Pilot drilled the skin first then lined up the Elevator Cutout Channel and pilot drilled it. Once the channel was clecoed in place I pilot drilled the trim tab hinge to the elevator and enlarged the holes to #30.

Layed out the holes for the trim tab servo and arms. Moved everything left 5mm to put the rod hole between rivets already in the part.

Just as I looked at these pictures I noticed I did my layout on the wrong side of the rib. It was facing up when I drew it. Glad I didn't cut the holes yet.
' style=

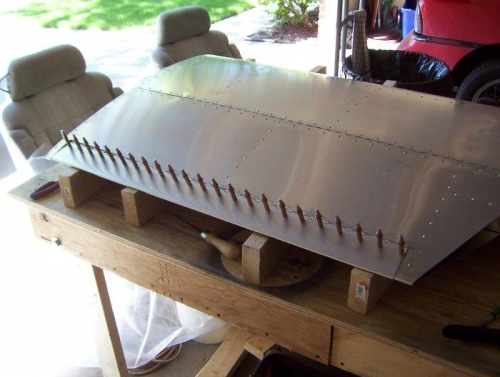

Ready to pilot drill

Ready to pilot drill

' style=

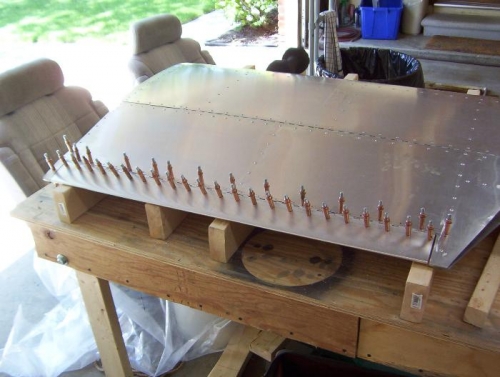

3/32 clecos

3/32 clecos

' style=

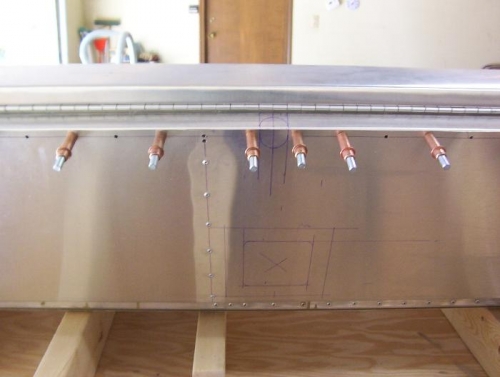

Wrong way, should be on left of rib

Wrong way, should be on left of rib

' style=
