Date: 3-8-2009
Number of Hours: 0.10
Manual Reference:
Brief Description: Crimping pins Pg 1

These pictures are intended to demonstrate crimping pins for either D-Sub or molex pins. I used the SAT-018 crimping tool: http://www.steinair.com/tools.htm. Works great!

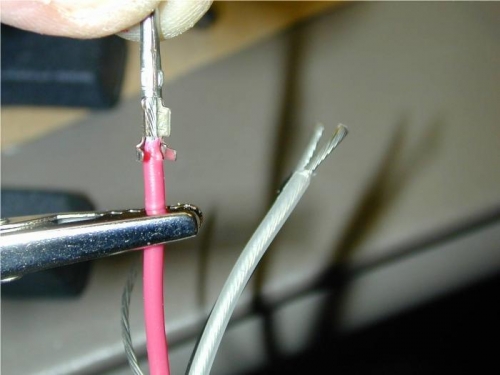

Pin held to wire

Properly crimped using crimping pliers

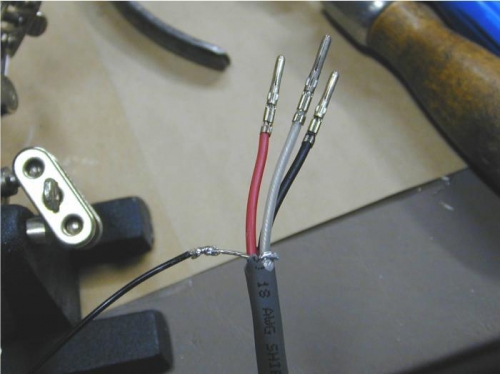

Adding shield extension wire by solder #22 wire to shield
