Date:  7-31-2017
Number of Hours:  60.00
Manual Reference:
Brief Description:  develop detailed design for electrical

In May I attended the G3X installation class given at the Aircraft Electronics Association (AEA). Three days of intensive, practical instruction on how to put together and wire the avionics in a complex modern aircraft. At the conclusion of the course I sat down to sort out the intended system in my aircraft.
Over the course of the next month and a half I generated 27 pages of detailed electrical wire diagrams. Every wire is illustrated and numbered. Each will be labeled in the aircraft to make tracing easy.

The hours are just an estimate. I likely have twice that into the class, design development and drawings.

For a detailed write up of the process and access to the entire file go you this link in VAF;

http://www.vansairforce.com/community/showthread.php?t=152279
' style=

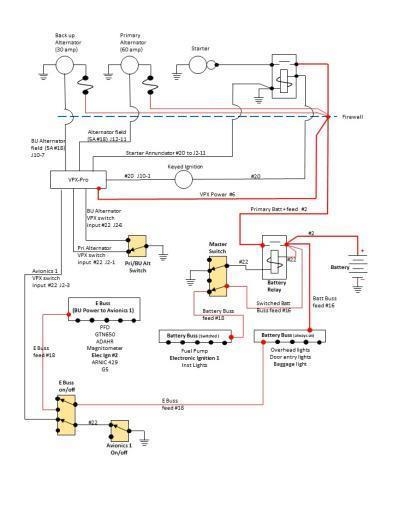

main power distribution

main power distribution

' style=

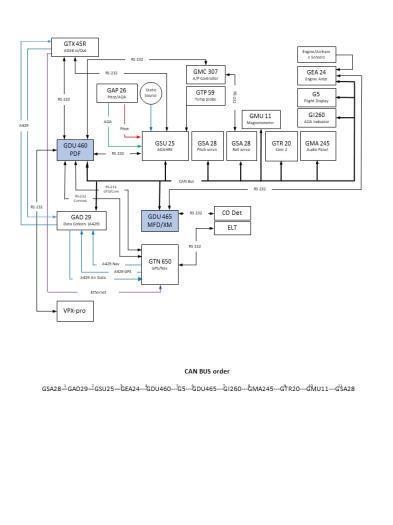

communications diagram

communications diagram

' style=

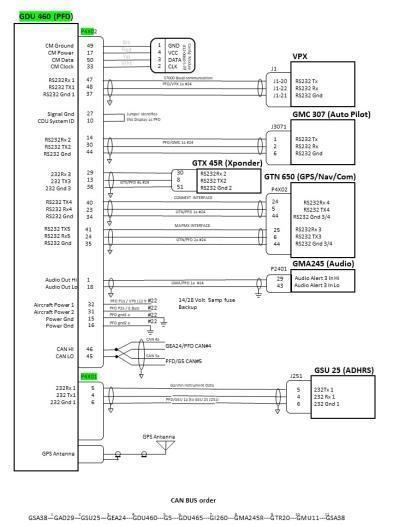

typical pin out sheet

typical pin out sheet
