Date:  5-20-2015
Number of Hours:  3.00
Manual Reference:
Brief Description:  Temp sensor wire, connect mags to switches

I soldered a resistor in-line for the RPM pickoff on the right mag. Then, connected the terminal to the right mag and secured it and the p-lead with an adel clamp. Next I secured all wires to the mags and temperature sensor to some of the engine mount tubes. Cleaned up the excess wire and bundled the wires with tie wraps. I changed out a couple of adel clamps to better secure some of the wire bundles. I terminated the ends of the p-leads and connected them to the toggle switches in the cockpit.
' style=

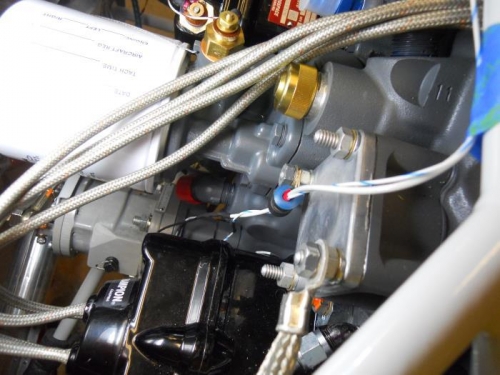

R mag wires secured with adel clamp

R mag wires secured with adel clamp

' style=

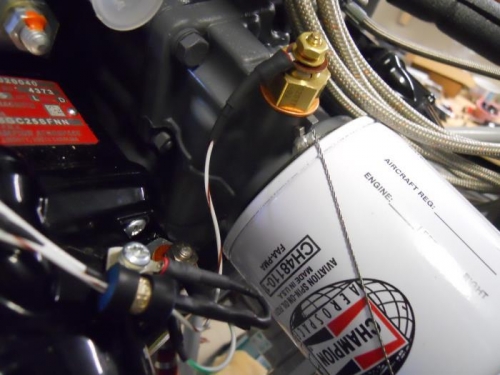

Temp sensor & L mag wires

Temp sensor & L mag wires

' style=

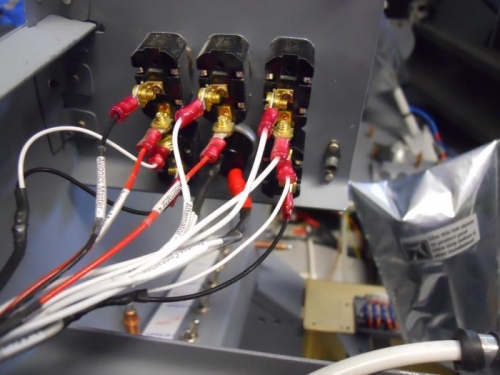

Mag wires terminated to toggle switches
