RV-7A Construction Log
' style=
Date:  12-4-2016
Number of Hours:  1.00
Manual Reference:
Brief Description:  Engine Power & Grnd Cables 1 From Van's

While working the engine wiring I got confused about the main wiring and bought the 4 major cables from Van's and their wiring drawing. This helped a lot. I put on:

1. The alternator wire
2. Battery positive
3. Battery grounding strap
4. Engine grounding cable
' style=

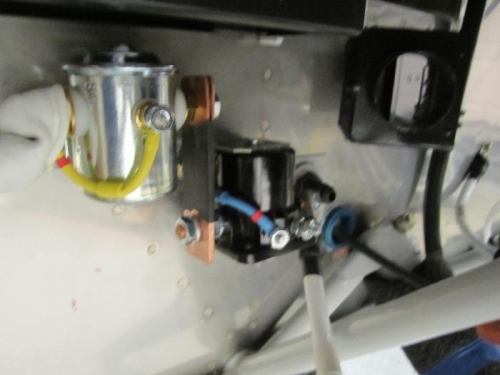

Alternator cable to stator

Alternator cable to stator

' style=

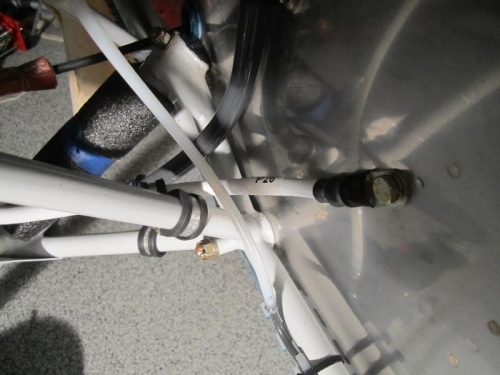

Engine Grounding

Engine Grounding

' style=

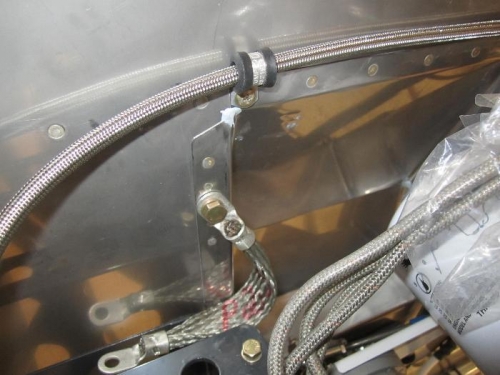

Battery Ground Strap

Battery Ground Strap
