Rob's REBVAIR Project
' style=
Date:  5-4-2020
Number of Hours:  1.00
Manual Reference:
Brief Description:  BRS blast shield Part 2

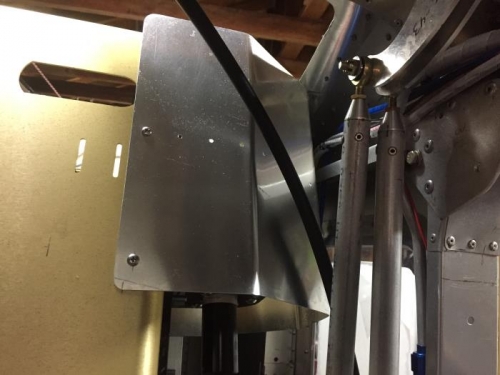

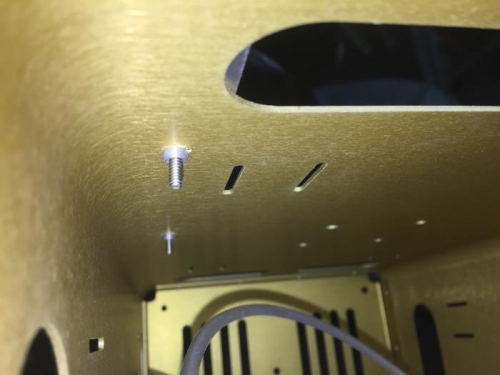

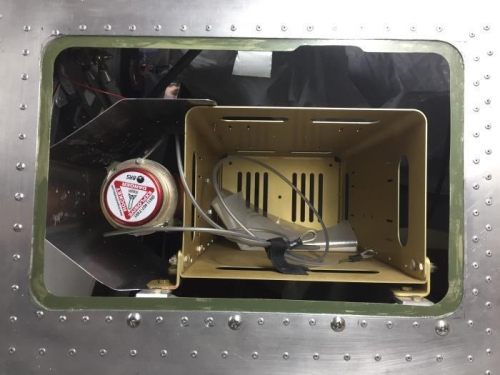

Image 1 shows the clearances around the rocket. Image 2 shows the installed blast shield held to the canister with two #6 screws. These only need to hold the forces for a fraction of a secondImage 3 shows the rivnuts inside the canister. Shorter screws will ultimately be used.
' style=

general clearances

general clearances

' style=

two #6 screws hold the shield to the canister

two #6 screws hold the shield to the canister

' style=

rivnuts...shorter screws will be used on final install

rivnuts...shorter screws will be used on final install
