Date:  5-8-2013
Number of Hours:  1.00
Manual Reference:  WIX-T06
Brief Description:  Cut Ruddervator Skin and Mark Ribs

Made 20 degree cut in ruddervator skin (SNX-Z03-01) using hand snips. Placed rib inside and confirm cut was perpendicular.

Marked ruddervator rib centerlines using 1/4" thick plywood as a guide. This will speed up marking of ribs with very consistent centerlines.
' style=

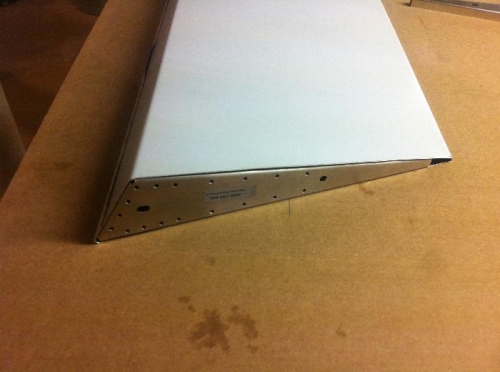

First sheetmetal cut

First sheetmetal cut

' style=

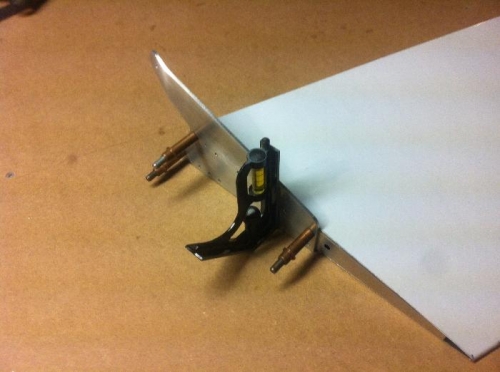

Ruddervator cut is perpendicular

Ruddervator cut is perpendicular

' style=

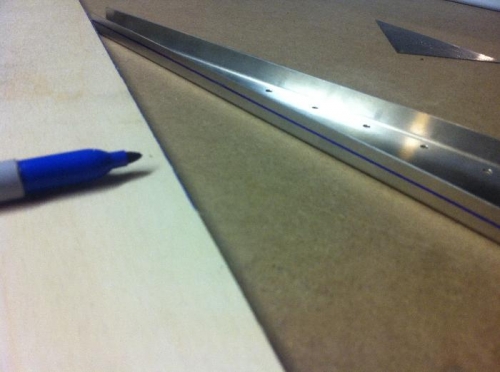

Rib centerline marking

Rib centerline marking
