N983LK
' style=
Date:  7-13-2020
Number of Hours:  5.00
Manual Reference:
Brief Description:  Pressure sensor wiring hookup

Replaced most of the zip ties forward of the firewall with string ties.

Spliced and terminated wires to hookup the manifold pressure, oil pressure and fuel pressure sensors.

Booted up the skyview system and verified that the oil and fuel pressures read zero and the manifold pressure read ambient pressure (30.1)
' style=

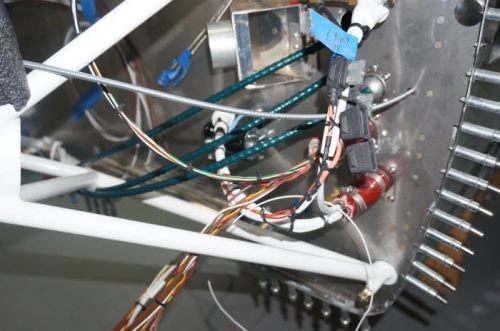

String ties on wire bundles

String ties on wire bundles

' style=

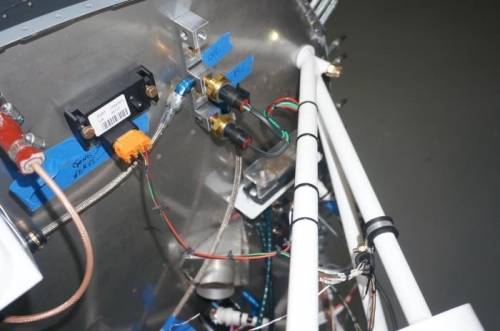

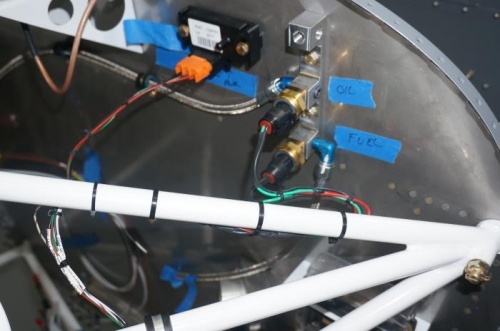

Manifold, Oil and Fuel pressure sensors hooked up

Manifold, Oil and Fuel pressure sensors hooked up
