RV-7
' style=
Date:  5-21-2016
Number of Hours:  8.00
Manual Reference:
Brief Description:  Gas strut brackets, rear canopy fitup

Fabricate brackets for gas struts for the canopy / fuselage.

Using spacer blocks, position canoy hoop in locaton, positon side frames (WD-725), side skins, and clamp. Drill to hoop and side skins
' style=

Gas strut brackets

Gas strut brackets

' style=

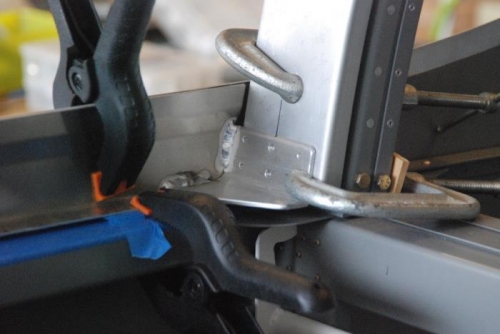

Claming hoop to side skins

Claming hoop to side skins

' style=

Drilled and cleco'ed

Drilled and cleco'ed
