Date:  6-22-2012
Number of Hours:  1.00
Manual Reference:  C01
Brief Description:  Elevator trim

Finished the elevator trim system.

- Riveted the trip handle support bracket.

- Installed the wire housing (black, in photo #1).

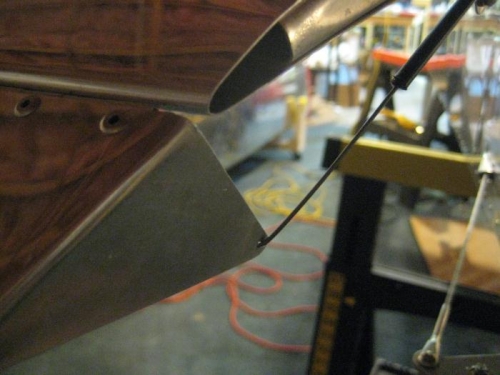

- Made the Z bend in the trim tab end of the wire, and installed it in the trim tab (photo #2).

- Tightened down the screw on the swivel bolt and cut off the extra wire (photo #3).
' style=

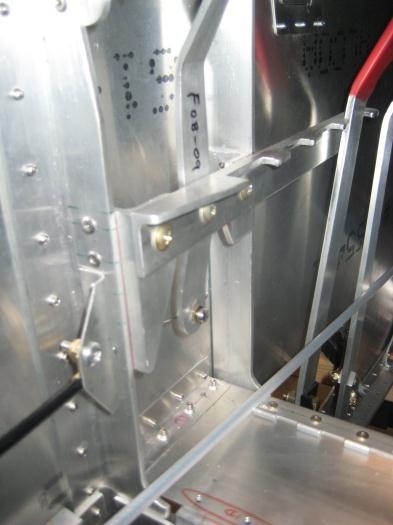

Trim and flap notch assembly riveted in place.

Trim and flap notch assembly riveted in place.

' style=

Wire to trim tab installed.

Wire to trim tab installed.

' style=

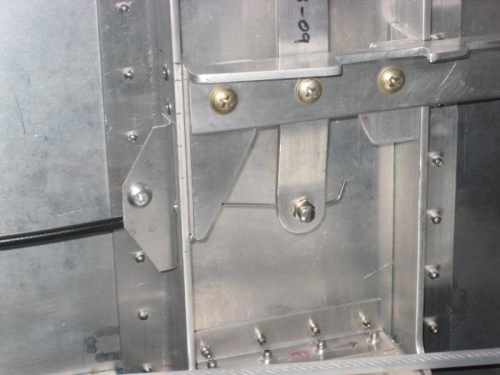

The trim wire in place. I left extra wire just in case I need some more adjustment.

The trim wire in place. I left extra wire just in case I need some more adjustment.
