Jim's RV12 Build
RV12
  Wiring
  3-12-2014
' style=
Date:  3-12-2014
Number of Hours:  0.50
Manual Reference:  31b-06
Brief Description:  Fuel flow tranducer

Steps 1-3
Fuel flow transducer hookup
' style=

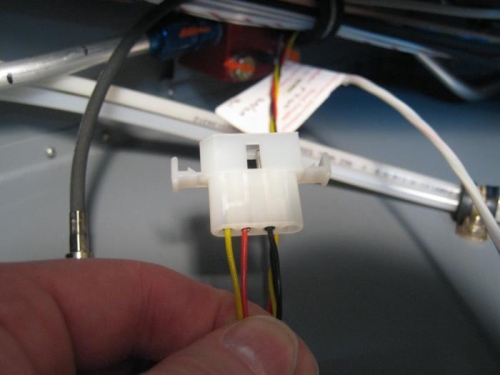

Inserting wires into the molex plug

Inserting wires into the molex plug

' style=

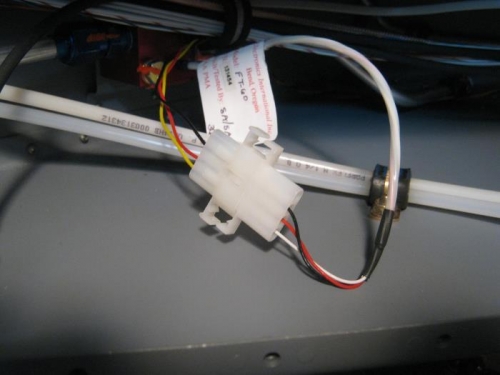

Connected molex plug to fuel flow transducer

Connected molex plug to fuel flow transducer
