Date: 5-30-2009
|
Number of Hours: 16.00
|
Manual Reference:
|
Brief Description: Avionics Wiring
|
|
I powered up my Advanced Flight Systems AF-3400 last week after connecting to the Avionics buss for the first time, and unfortunately, the left EFIS had a video problem where the video feed was fragmented, making it unreadable. I sent both units back to AFS, and both were repaired at no charge. They also updated some the components and software at no charge, too. I asked them to replace the batteries, as the units were now over 2 years old, that was on my dime. On Saturday, the 30th of May, Kelley Babin, and his friend Ed, came down and finalized the intercom wiring, which is a major pain, They tested all the jacks out and everything worked fine. I also fabricated all the antenna cabling BNC connectors and routed the associated cabling.
|
|

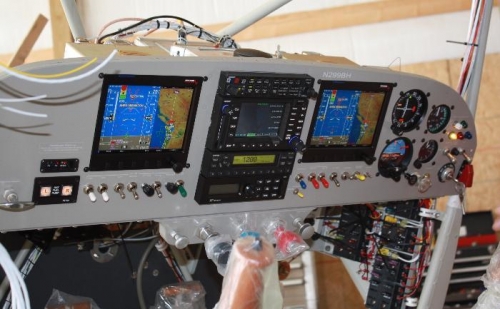

Power to the panel.
|
|
Left EFIS wiring.
|
|

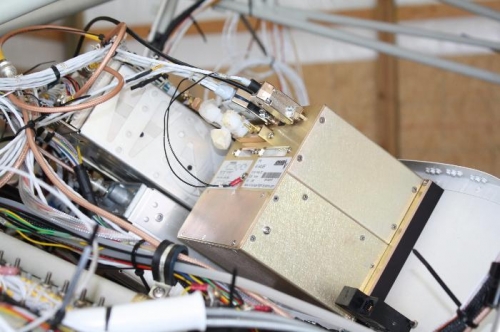

Right EFIS wiring.
|
|
|
|
|
|
|
|
|
