Date: 6-19-2009
Number of Hours: 2.30
Manual Reference: Dwg. 23
Brief Description: Trim tab fabrication

Fabricate trim tab with piano hinge and bell crank secured together with HM-14 1/8" rivets (17) and secure to trailing edge of left elevator with 15 HM-14 rivets. Shorten push-pull control cable and connect to bellcrank with a cable end stop.

Trim tab mounted on left elevator

Cable connection to trim tab

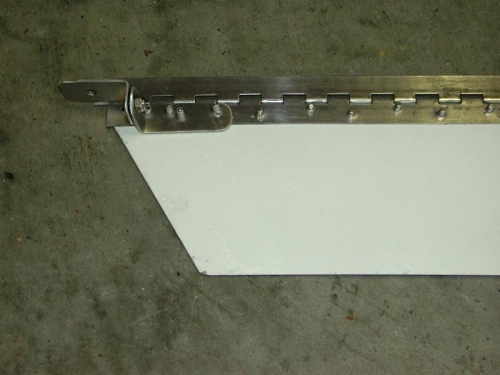

Trim tab detail
