Date:  7-1-2008
Number of Hours:  1.30
Manual Reference:  Dwg. 16, video
Brief Description:  Aileron crank

Notch out front bulkhead boom tube 5/16" to provide added cearance for aileron crank, and then file smooth. See video.

Drill 3/16" hole through collar of HC-72 aileron crank and bearing tube. Apply epoxy putty and secure into pace with HH-19 (AN3-14A) bolt, washer and locknut. See Dwg. 16.
' style=

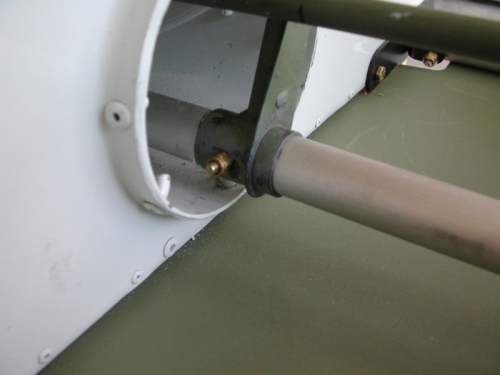

Aileron crank bolted in

Aileron crank bolted in

' style=

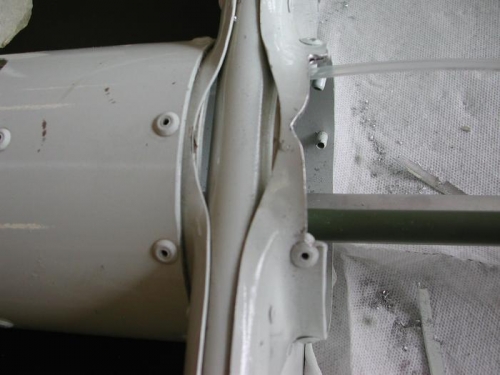

Notched out boom tube

Notched out boom tube

' style=

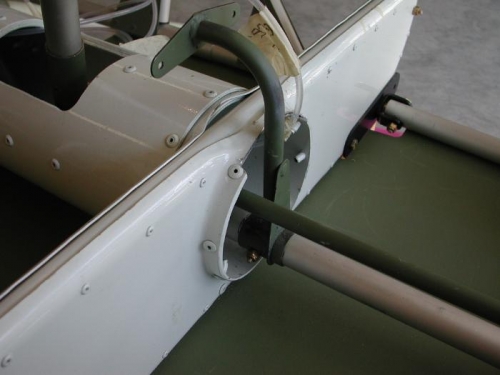

Aileron crank in position and secured

Aileron crank in position and secured
