Date: 5-15-2008
Number of Hours: 1.40
Manual Reference: Dwgs 1 & 3
Brief Description: Main gear saddle

Position center of steel main landing gear saddle LG-1 24-1/2" aft of forward bulkhead as shown on Dwg 1. Position 7 holes on each edge of saddle 1/4" in. Drillout all 14 holes to 3/16" and deburr.-

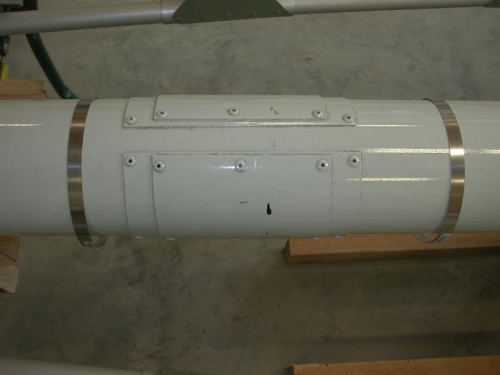

Position of LG-1 centerline

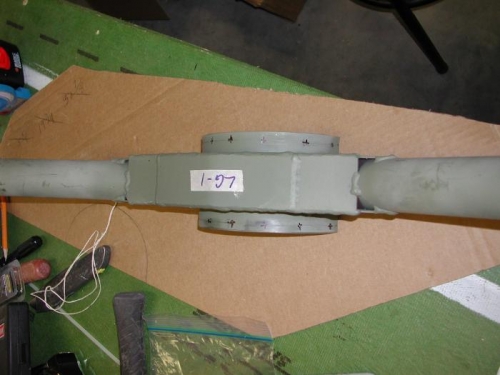

Holes positioned on LG-1

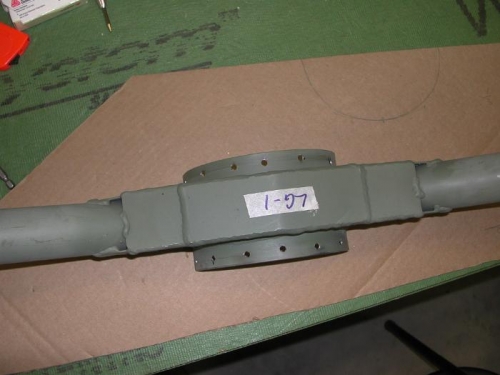

3/16" holed drilled out
