Date: 11-15-2007
|
Number of Hours: 6.50
|
Manual Reference: Dwgs 5,6,
|
Brief Description: Nose cross bracing
|
|
Located, mounted and riveted HF-103 TP cross-tie tube using gussets HG-3 and HG-21 L&R.
Spray primed all gussets for nose assembly.
Located floor spreaders HF-22 (actually labeled HF-102, HF-21 TP and HF-38), riveted into place using topside gussets only, HG-34 for HF-102, HG-18 for HF-21 TP and HG-1 for HF-38. See drawings 5 & 6 and Instructions 2 & 3 (fuselage nose section) page 8,
Temporarily located but did not yet secure HG-82 with gussets HG-50 on sides and HG-34 on tops.
Cross tubes
HF-103 TP
HF-102
HF-38
HG-82
Gussets HG-3, 21 L&R,18,34,1,50
|
|

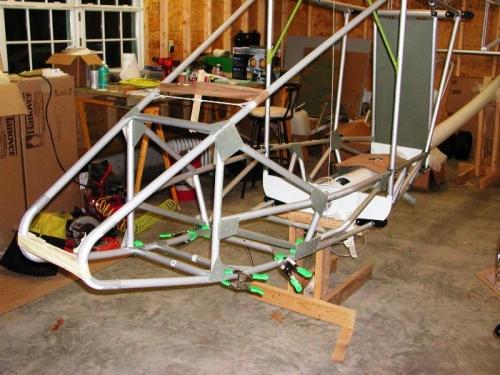

Nose section cross bracing
|
|
|
|
|
|
|
|
|
