  1-15-2013
' style=
Date:  1-15-2013
Number of Hours:  1.50
Manual Reference:  NA
Brief Description:  Skin Attach Flanges (SB 12-11-09)

Step 22
Machine contersunk holes in F-1270D side skin doublers for CS4-4 rivets. Directions say to also countersink F-1270A that take CS4-4 rivets but there are no rivet locations specified for this doubler in Figure 6.

Step 23
Separated F-1204B-L & -R and F-1204T-L & -R skin attach flanges.

Step 24
Applied a slight upward angle on F-1204B-L & -R skin attach flanges.

Step 25
Clecoed F-1204B-L & -R skin attach flanges into position and match drilled holes in flanges.

Step 26
Removed F-1204B-L & -R skin attach flanges and deburred holes and edges. Also deburred holes and edges of F-1204T-L & -R skin attach flanges.
' style=

F-1270D Skin Doublers Machine Countersunk

F-1270D Skin Doublers Machine Countersunk

' style=

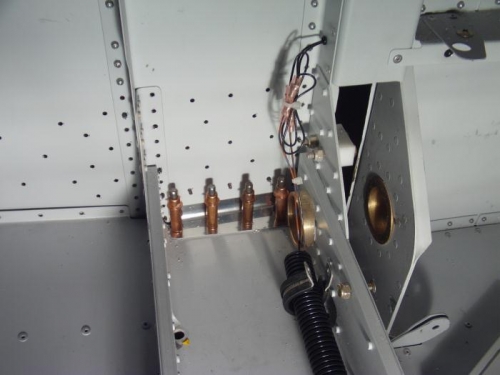

F-1204U-B Skin Flanges Match Drilled
