Date:  9-8-2020
Number of Hours:  1.00
Manual Reference:  Section 8
Brief Description:  Layout F-719B Angle Clips

Cut angle stock to make F-719B angle clips. Did layout work to make a left and right clip. Many dimensions on these parts, and I made one mistake locating a hole, so I set aside to double check my work in the morning.
' style=

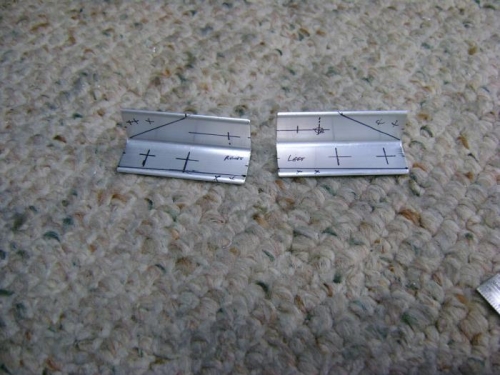

Initial layout

Initial layout
