Today I worked on completing the aft web tunnel assembly that I had previously started. I positioned, pilot drilled and updrilled the web to 32 and all of the angles to 30. I deburred all holes and edges to prepare for the dimpleing of the web and countersinking the angle. I need to order a 120 degree counter sink cutter to finish.

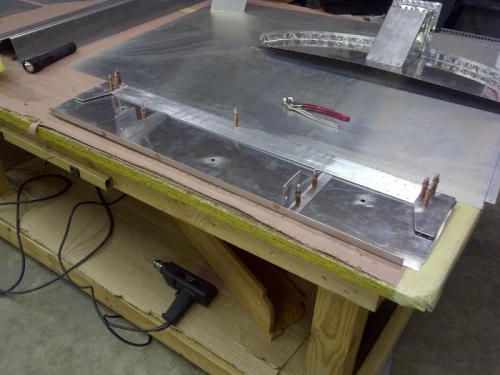

Aft web tunnel assembly.

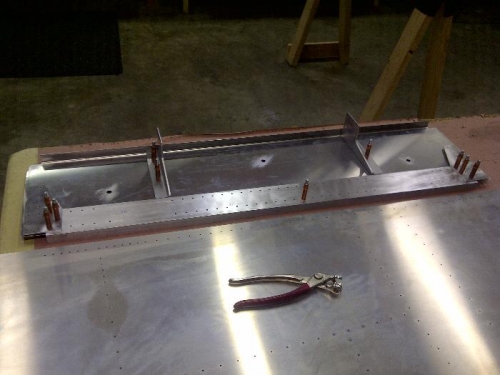

Aft web tunnel assembly.

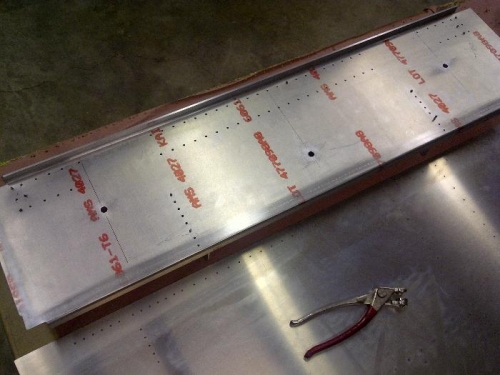

Holes in aft web tunnel assembly will be dimpled and the angles will be counter sunk.
