Date:  1-13-2020
Number of Hours:  4.50
Manual Reference:
Brief Description:  Fuel Pump Manifold Clamp and Engine Wiring

Plans:
1. Add a clamp to the fuel intake manifold.
Status: Complete. In addition to adding the clamp I removed the fuel filter spring clip and bracket. The clamp alone held the assembly very securely. Between the clamp and bracket a preload was being applied to the fuel tank outlet pipe. Removing the bracket relieved the tension.
2. Add insulated thumb screws to the power bus covers.
Status: Complete. The bolts that held the power bus cover in place were replaced with non-conductive thumb screws. The buses are now completely shielded from above.
3. Continue wiring the avionics.
Status: 95% complete. All of the electrical leads into the engine compartment were added with one exception. The fuel pressure sensor remains unconnected.
' style=

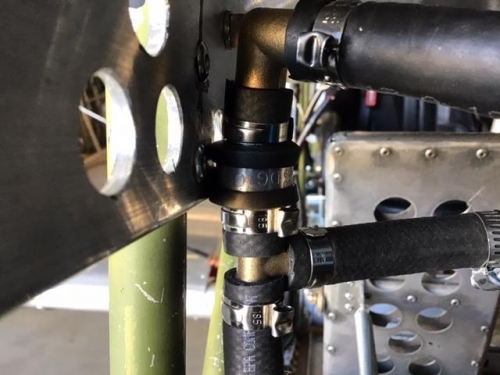

Manifold Support Clamp

Manifold Support Clamp

' style=

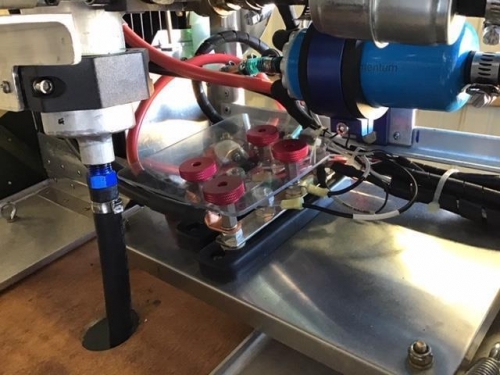

Power Bus Protective Cover

Power Bus Protective Cover

' style=

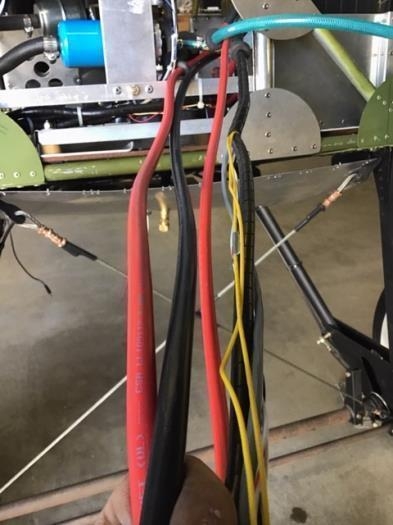

Engine Wiring
