Date:  10-4-2018
Number of Hours:  5.00
Manual Reference:
Brief Description:  Brake Assembly

Plans:
1. Complete Brake Assembly.
Status: 98% Complete. Just a few loose ends remain. I added custom cable ends and pedal return springs. The cable ends will securely hold the cable housing while allowing the cables to pass. The springs pull the pedals out of the way of the pilots feet when not applied. Now that the assembly is near completion I was able to determine the routing of the brake cables down to the wheels. Some slots were cut into the flooring that allow the cable housings to pass.
' style=

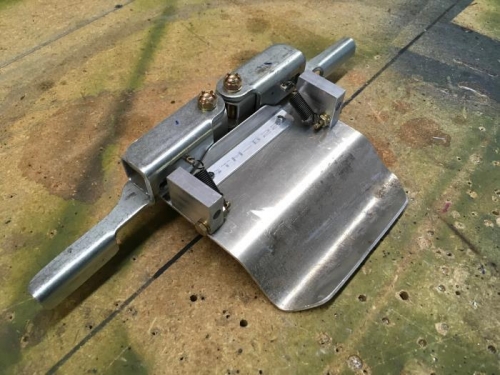

Pedal Return Springs

Pedal Return Springs

' style=

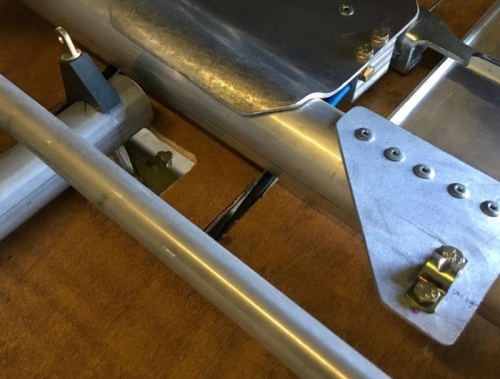

Cable Passage Slot

Cable Passage Slot

' style=

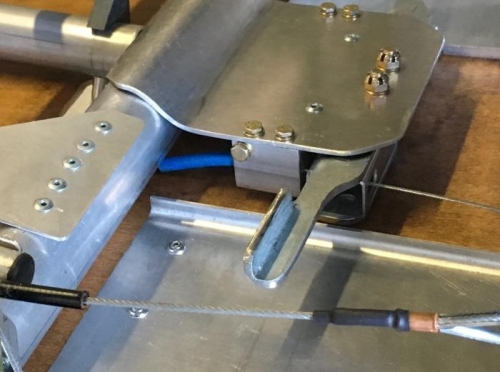

Cable Ends
